Design decision
Why this idea works
The apron is the hardest-working few feet of any driveway: every entry and exit pivots here, so it takes more turning and braking wear than the straight run. Giving it real width and a tidy joint layout means the garage reads as finished from the street and the door tracks and thresholds stay clear of standing water and grit.
- The tradeoff
- The layout sets a clear direction, but it also commits the project to fixed relationships. Set the slope away from the garage doors and the base compaction before you fuss over joint spacing or edge detail.
- How to measure it

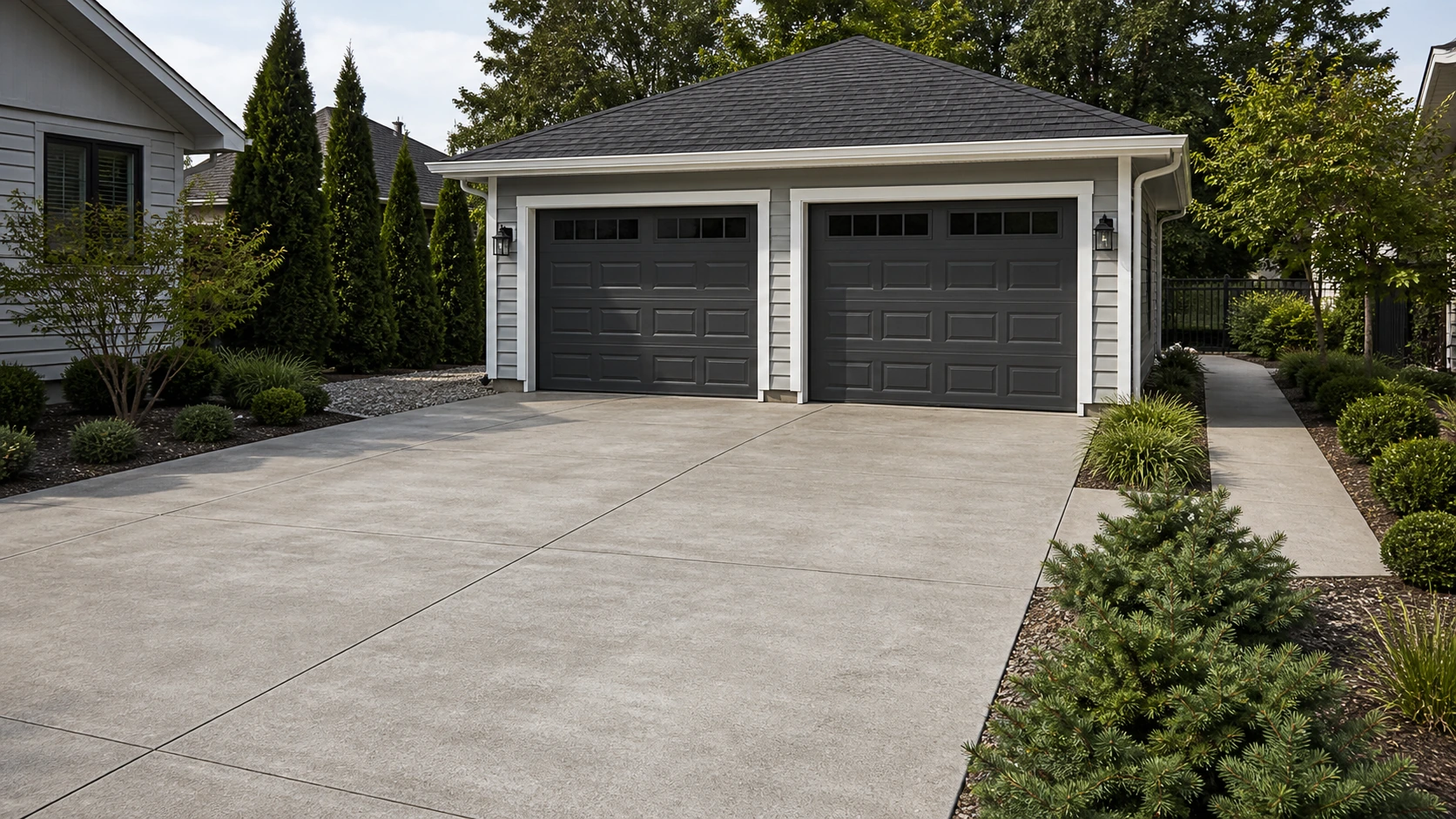

- Conceptual range: measure the apron as its own rectangle across both bays, then any driveway tie-in as a separate piece.
On your property
Plan it for your site
A light broom finish across the field gives tires grip in rain and hides tire marks better than a slick trowel. Line the sawn control joints up with the door jambs and the driveway joints so the apron looks like one planned surface rather than a patch in front of the doors.
- Slope the whole apron gently away from the door thresholds so rain and snowmelt never pool at the tracks.
- Carry the apron slab thickness and base to what car and occasional heavier loads need, not what a walkway would use.
- Place an isolation joint where the apron meets the garage slab so the two can move independently.
Before forms are set
Build implications
- Confirm before estimating Slab thickness, base compaction, and any reinforcement suited to vehicle loads.
- Confirm before estimating Control-joint spacing and an isolation joint at the garage face.

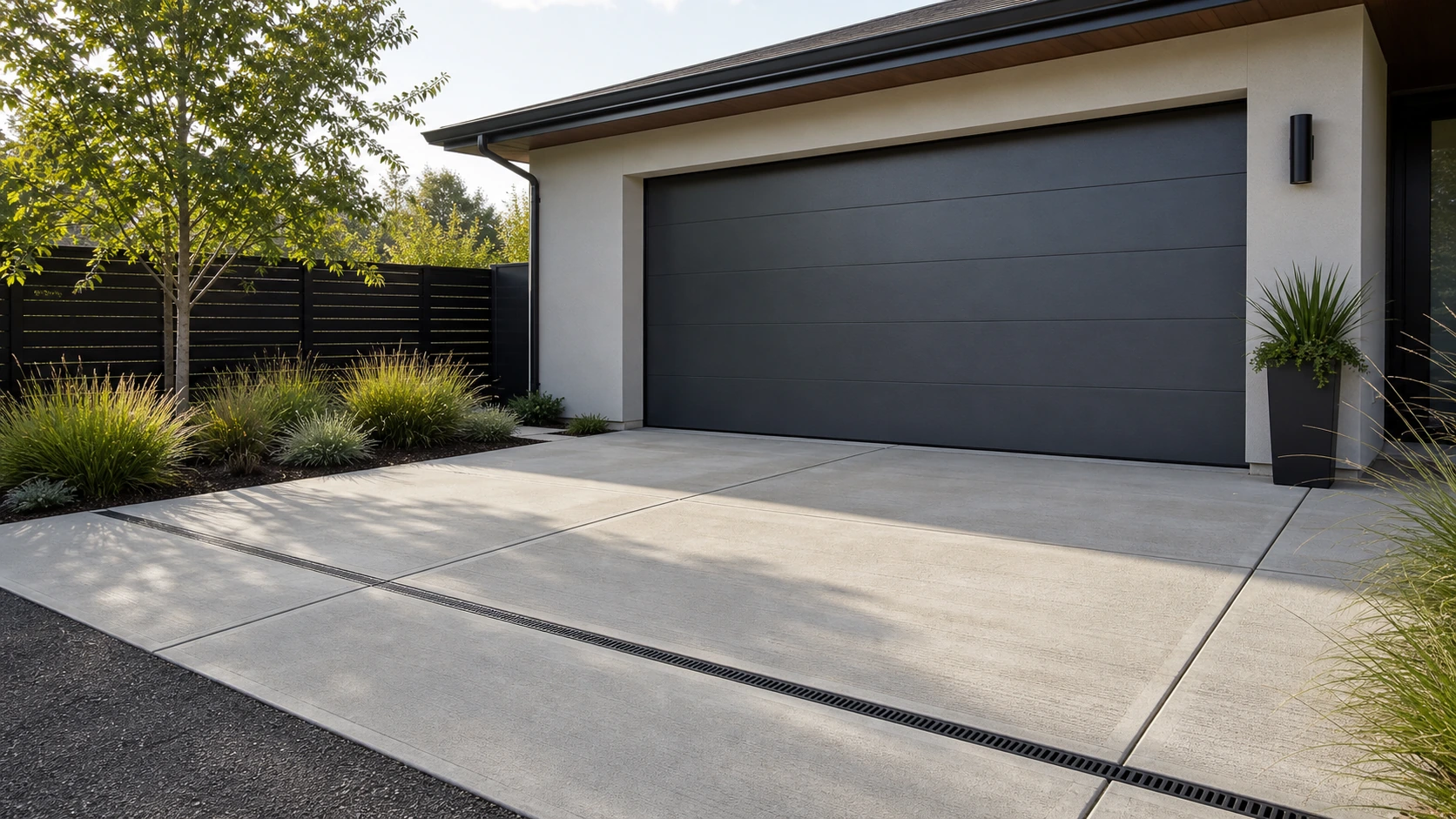

- Confirm before estimating Finished slope away from the doors and toward the driveway or a drainage path.
- Measure the site and establish elevations Record boundaries, thresholds, grade changes, utilities, and the dimensions of vehicles, furniture, equipment, or structures that affect the layout.
- Test how the space will be used Check walking routes, turning paths, door swings, working clearances, maintenance access, and the route back to the house or street.
- Resolve drainage, services, and structural support Decide where water goes and coordinate drains, conduit, irrigation, fuel, electrical work, footings, and independent supports before forms are set.
- Define and estimate each concrete element Confirm the slab or footing section, base, joints, edges, and finish, then estimate simple measurable fields separately from steps, walls, drains, and supported features.
Prevent these problems
- Designing for a car instead of the heaviest loadTrailers, trucks, lifts, jacks, and equipment may require a different slab section, reinforcement, or edge detail.
- Forgetting working utilitiesEV conduit, drains, wash-down routes, compressed air, and power should be coordinated before the pad is placed.
- Using decorative panel sizesLarge or elongated panels may crack unpredictably when the joint layout is driven by appearance instead of slab behavior.
Next step
Turn the idea into your estimate
Enter measurements from the property. The conceptual image does not provide a takeoff.
Estimate a similar garage padQuestions this idea raises
How thick should a garage apron be?
An apron carries the same vehicle loads as a driveway, so it is normally thicker than a footpath and built on a well-compacted base. Confirm the thickness, base, and any reinforcement for your soil and climate before pouring.
Why put a joint between the apron and the garage floor?
An isolation joint lets the exterior apron and the interior slab move separately with temperature and settlement, which helps prevent cracks from telegraphing across the two. It is a standard detail worth keeping.
- Best when
- Garage aprons
- Reconsider when
- Reconsider the idea if actual vehicle or equipment loads, drainage, edge support, and joint layout cannot be resolved on the property.
- Verify first
- Set the slope away from the garage doors and the base compaction before you fuss over joint spacing or edge detail.
- Professional input
- Concrete contractor; engineer for lifts, heavy equipment, or unusual loading
